Secondary SHEV button type HE 081 Yellow
| Part number | A3 2141 |
| Input voltage | 24 V DC |
| LED signs | Rot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit |
Electric SHEV emergency button, HE 081 yellow
secondary SHEV button of electrical line... more
Product information "Secondary SHEV button type HE 081 Yellow"
Electric SHEV emergency button, HE 081 yellow

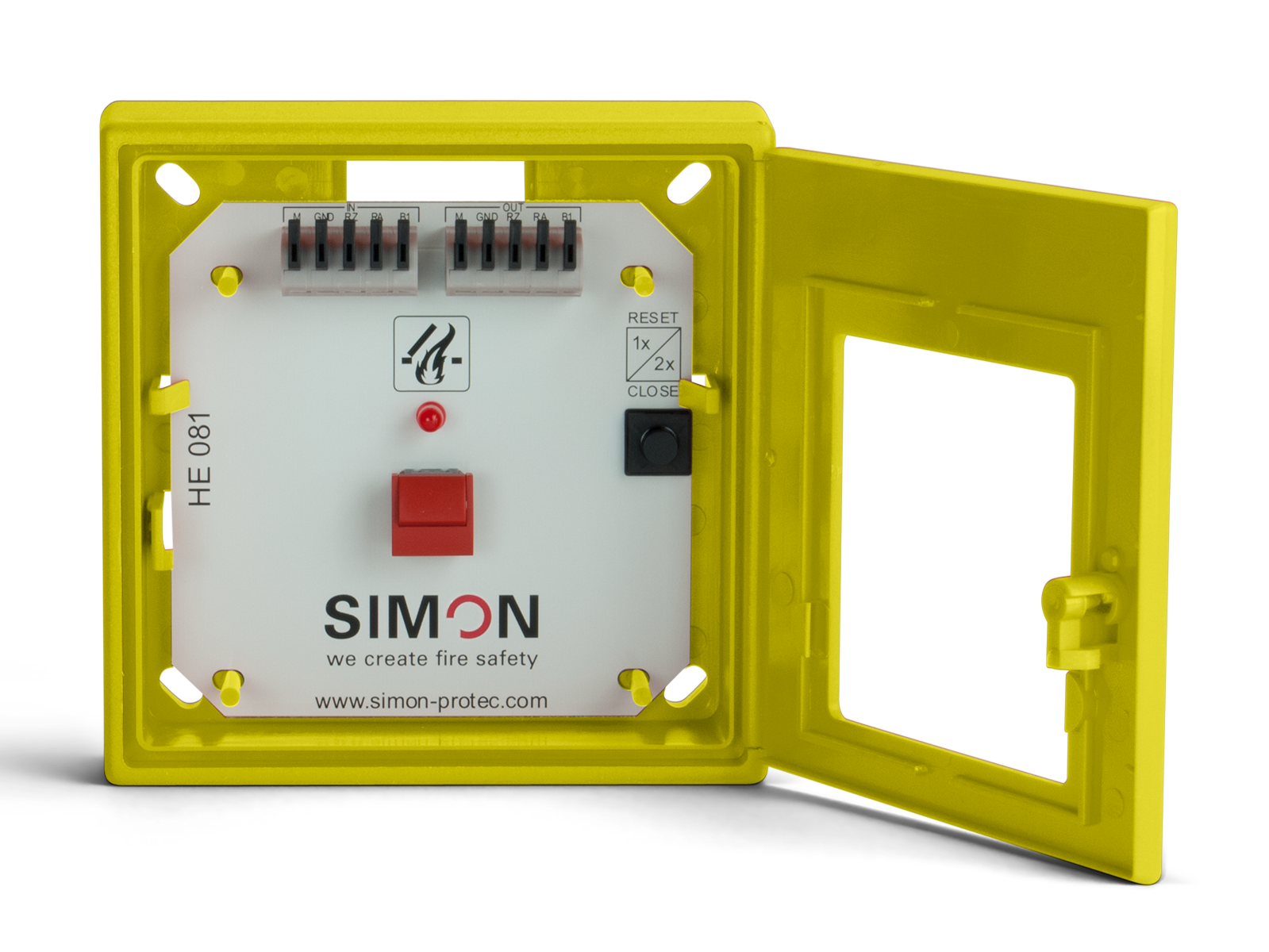

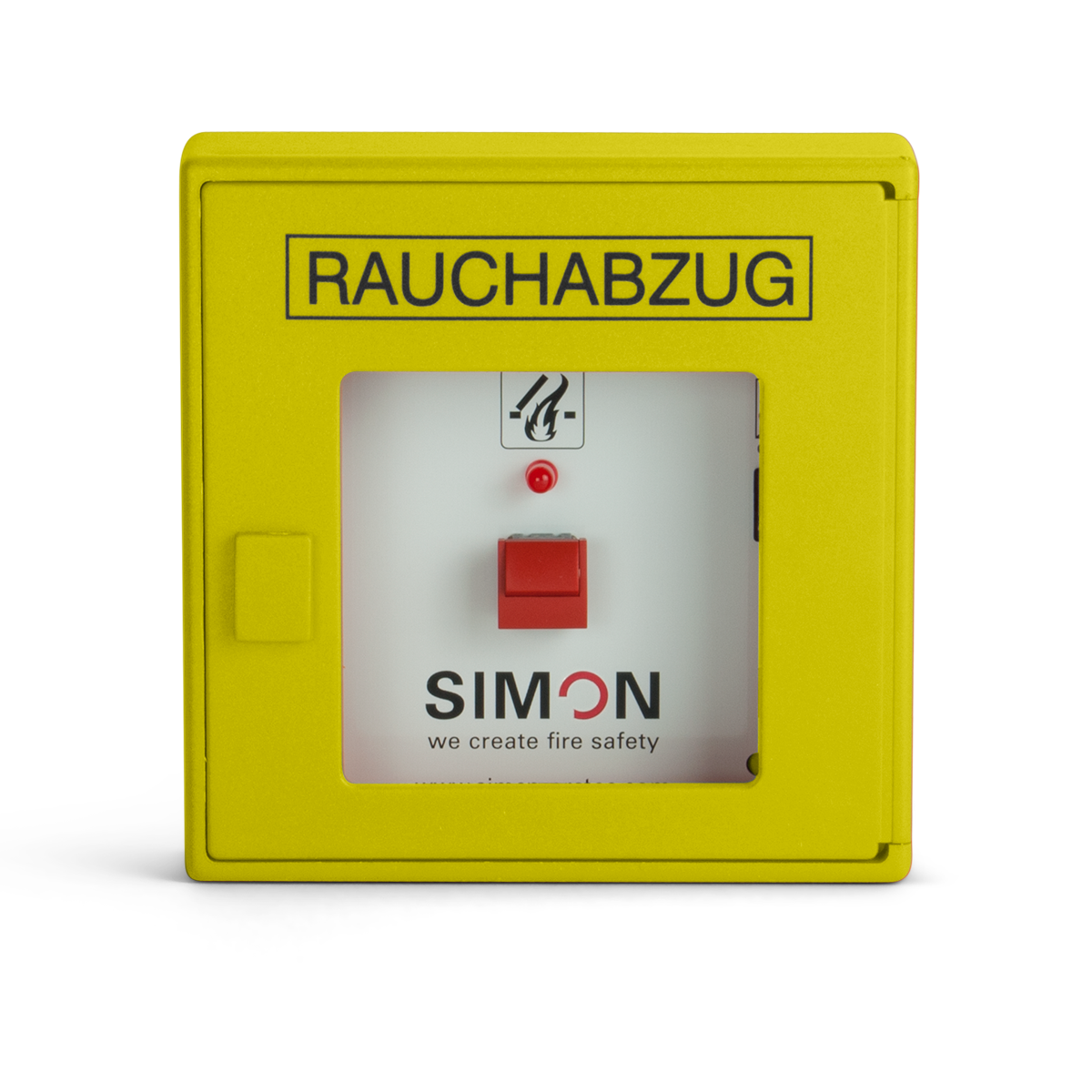

secondary SHEV button of electrical line monitored SHEV systems (SHEV 3, SHEV 6, ESM-T / X, - tested to DIN EN 12101/9), with interchangeable board, incl. "On" - button, "To" - button (NO) 24 V, 1 LED - indication for SHEV triggered (red), according to VdS guideline 2592 and in the sense of the MBO. Color RAL 1004, in impact-resistant plastic housing (ABS) according to DIN 14655, EN 54 complete with thin glass pane and key as unit.
Dimensions: 125 * 125 * 36 mm (H * W * D).
Related links to "Secondary SHEV button type HE 081 Yellow"
Matchcode HE 081 Gelb Article name Nebenbedienstelle für RWA-Anlagen HE 081 Gelb... more
| Matchcode | HE 081 Gelb |
| Article name | Nebenbedienstelle für RWA-Anlagen HE 081 Gelb |
| Part number | A3 2141 |
| Input voltage | 24 V DC |
| LED signs | Rot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit |
| IP code | IP40 |
| Weight | 0.2 |
| Housing | Aufputz-Kunststoffgehäuse, optional im Unterputzgehäuse mit Drehtüre, Einschlagscheibe und Schlüssel |
| Housing type | Plastic |
| Colour | Gelb (RAL 1004) |
| Housing width | 125 |
| Housing height | 125 |
| Housing depth | 36 |
| Appliance class | III |
| Nominal working temperature | 20 |
| Environment temperature range | -5 °C - 75 °C |
Product Information... more
Product Information
 Brochure Control Panels | Brochure Control Panels |
| Brochure Emergency override switch | Brochure about the emergency override switch HE-08x |
| Catalogue (web) Smoke & Daily Vent | Catalogue (web) Smoke & Daily Vent |
User Manuals
| Brief instruction HE-08x | Brief instruction for the alarm triggering devices HE080/081/082/086/087 |
Certificates
| Certificate Declaration of conformity HE-0xx | Declaration of conformity HE-0xx |
| Environmental Product Declaration (EPD) | Environmental Product Declaration (EPD) |
Other
| Safety instructions and warranty conditions | Safety instructions and warranty conditions |
