Main SHEV button type HE 080 Yellow
| Part number | A3 2131 |
| Input voltage | 24 V DC |
| LED signs | Rot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit |
Electrical manual emergency override switch HE-080 yellow

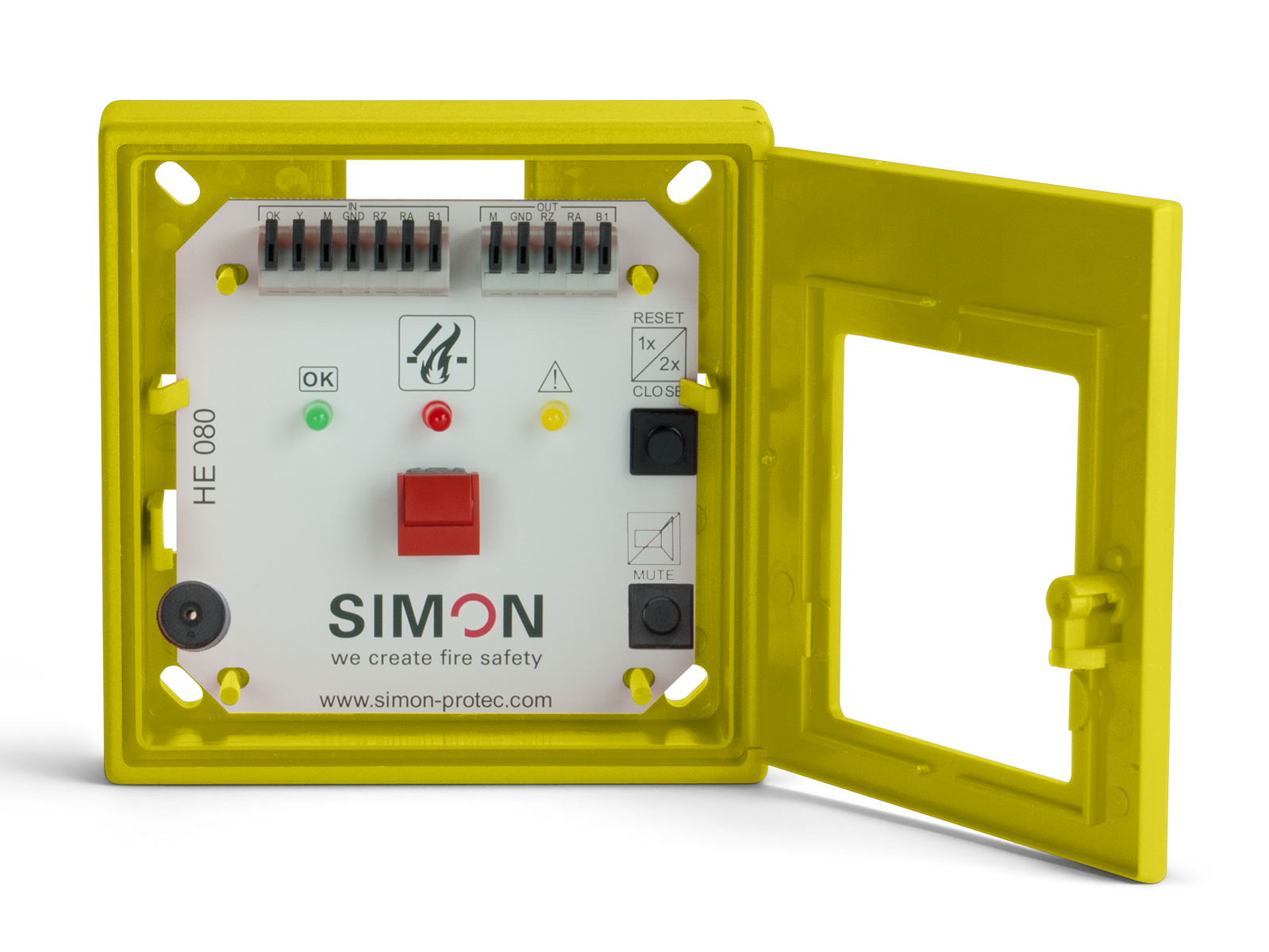

The HE 080 yellow is a main SHEV-button of electrical line-monitored SHEV systems (SHEV 3, SHEV 6, ESM-T / X, - tested according to DIN EN 12101-9), which is equipped with an exchangeable board - including "open" button and "CLOSE" button (NO). A total of three LED indicators for SHEV - "triggered" = red, "ready for operation" = green and "fault" = yellow were installed in the HE 080 yellow (according to the VdS guideline 2592 and in the sense of the MBO). In case of tripping or fault, a buzzer will sound. The mute button is included with the electrical main SHEV-button.
The HE 080 is available in shock-resistant plastic housing (ABS) in accordance with DIN 14655 in RAL color 1004 - complete with thin glass pane and key as a unit.
Dimensions: 125 * 125 * 36 mm (H * W * D)
| Matchcode | HE 080 Gelb |
| Article name | Hauptbedienstelle für RWA-Anlagen HE 080 Gelb |
| Part number | A3 2131 |
| Input voltage | 24 V DC |
| LED signs | Rot = Auslösung (RWA AUF) Gelb = Störung Grün = Betriebsbereit |
| IP code | IP40 |
| Weight | 0.2 |
| Housing | Aufputz-Kunststoffgehäuse, optional im Unterputzgehäuse mit Drehtüre, Einschlagscheibe und Schlüssel |
| Housing type | Plastic |
| Colour | RAL 1004 |
| Housing width | 125 |
| Housing height | 125 |
| Housing depth | 36 |
| Appliance class | III |
| Nominal working temperature | 20 |
| Environment temperature range | -5 °C - 75 °C |
