Compact Control Unit SHEV-3-HE-081
| Part number | ST4 3234 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 3.0 |
| SHE Groups | 1 |
| Ventilation groups | 1 |

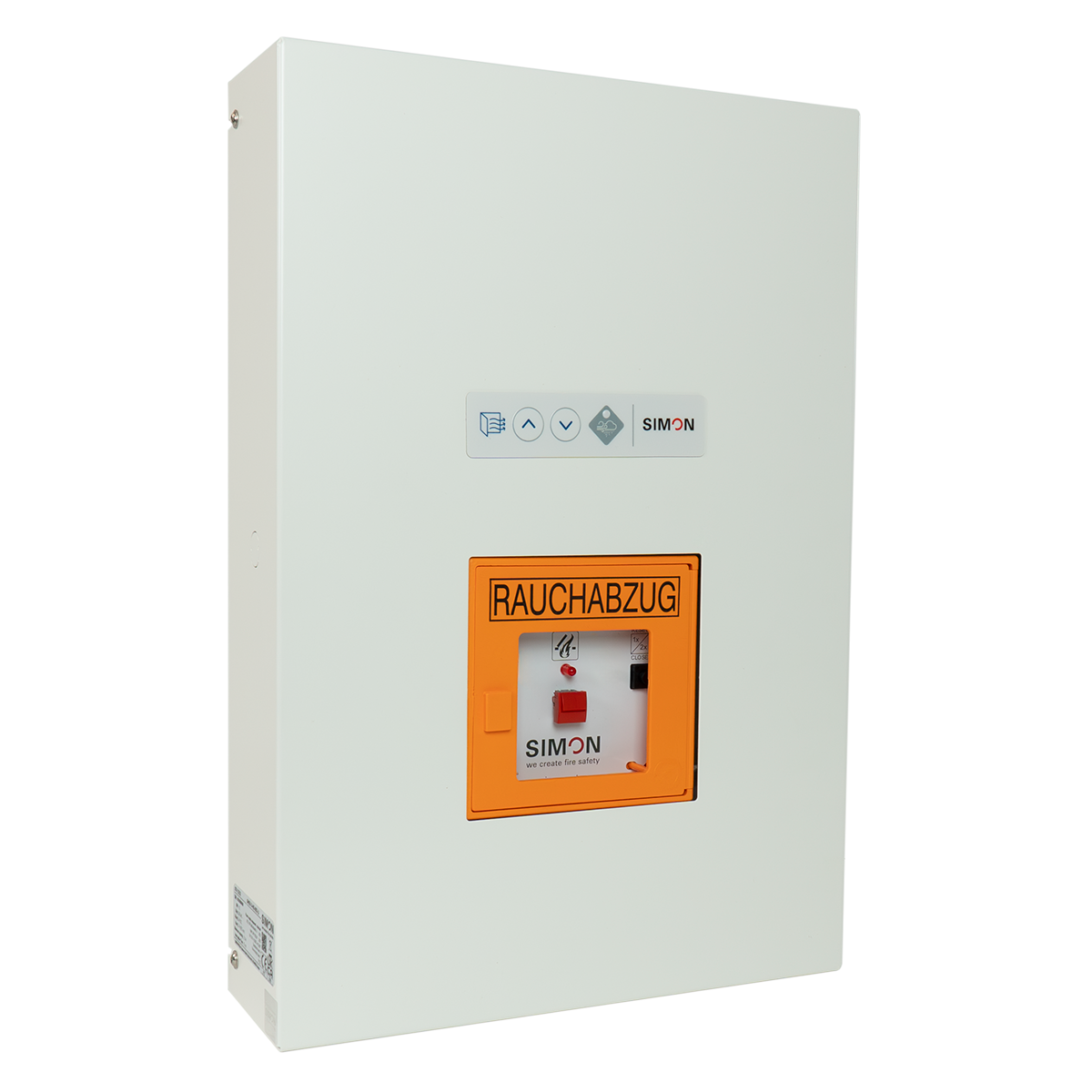

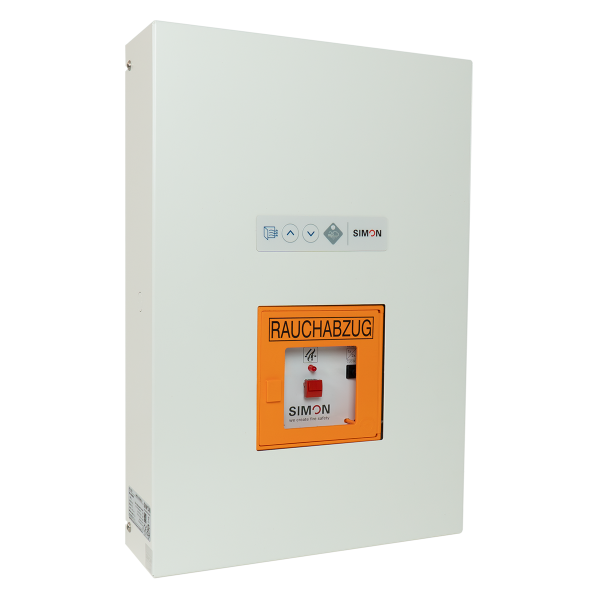

Compact control panel SHEV 3-HE-081
230 V AC / 24 V DC / 3 A

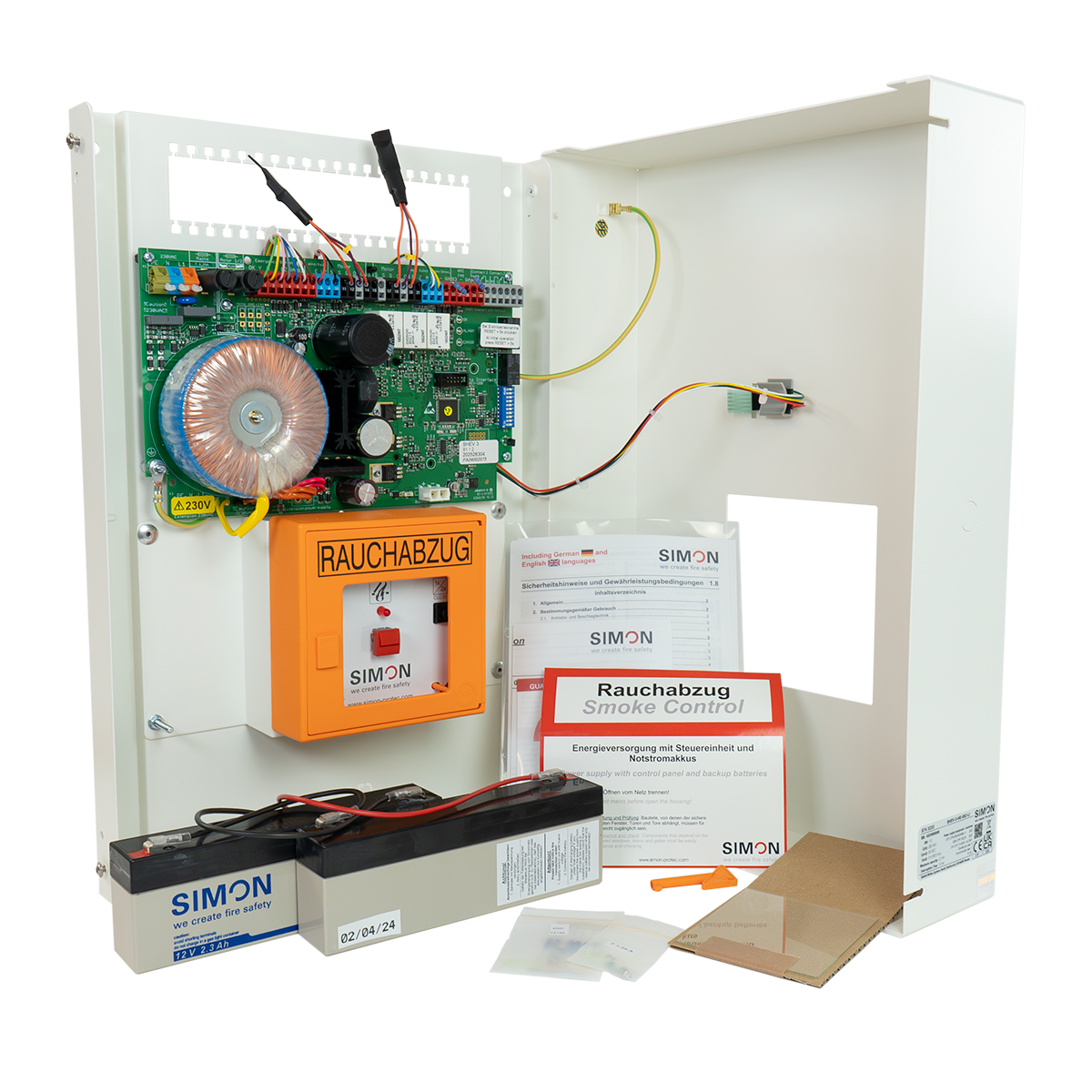

The SHEV 3-HE compact control panel is a compact device with an output current of 3 A. The control panel contains a primary and secondary power supply as well as the entire control and regulation technology for operating 24 Volt DC actuators for building openings, e.g. windows and smoke exhaust flaps. The compact control panel controls the actuators in case of fire as well as for daily ventilation. The SHEV compact control panel is specially designed for SHEV use in stairwells and for NSHEV and offers all necessary connections for release devices (push buttons, smoke detector, fire alarm system). In addition, various components can be connected for daily ventilation applications: wind/rain detectors, vent buttons, timers and higher-level controls. The ventilation function is at the same time a daily function control of the SHEV system.
The SHEV compact control panel is CE certified according to EN 12101-10 and tested according to ISO 21927-9.
Technical data:
Input voltage: 230 V AC
Output voltage: 24 V DC
Output current: 3 A
Monitoring: continuous and short-term operation
Protection class:: IP20
Temperature range: -5°C - +40°C
SHEV groups: 1
Ventilation groups: 1
Housing: sheet steel housing
Opening: from left, hinges right
Color: RAL 9016 white
Dimensions (WxHxD): 301 x 444 x 85 mm
Weight: 6.80 kg
Manufacturer:
SIMON PROtec Systems GmbH
Typ: Compact control panel SHEV 3-HE-081
Article number: ST4 3234
| Matchcode | SHEV-3-HE-081 |
| Article name | Kompaktzentrale SHEV-3-HE-081 |
| Part number | ST4 3234 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 3.0 |
| Classification | CE zertifiziert DIN EN 12101-10, geprüft ISO 21927-9 |
| IP code | IP20 |
| Switch on duration | 30 |
| SHE Groups | 1 |
| Ventilation groups | 1 |
| Weight | 6.80 |
| Housing | Stahlblechgehäuse |
| Housing type | Steel case |
| Colour | RAL 9010 |
| Housing width | 301 |
| Housing height | 444 |
| Housing depth | 85 |
| Environment temperature range | -5 °C - 40 °C |
