Compact Control Unit SHEV 3 LIFT
| Part number | ST4 3175 |
| Input voltage | 230 V AC |

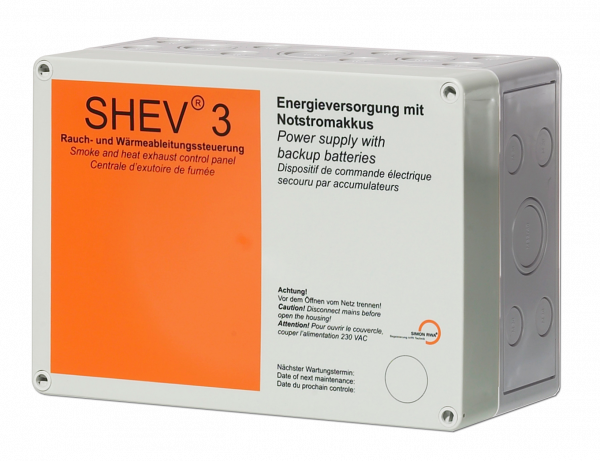

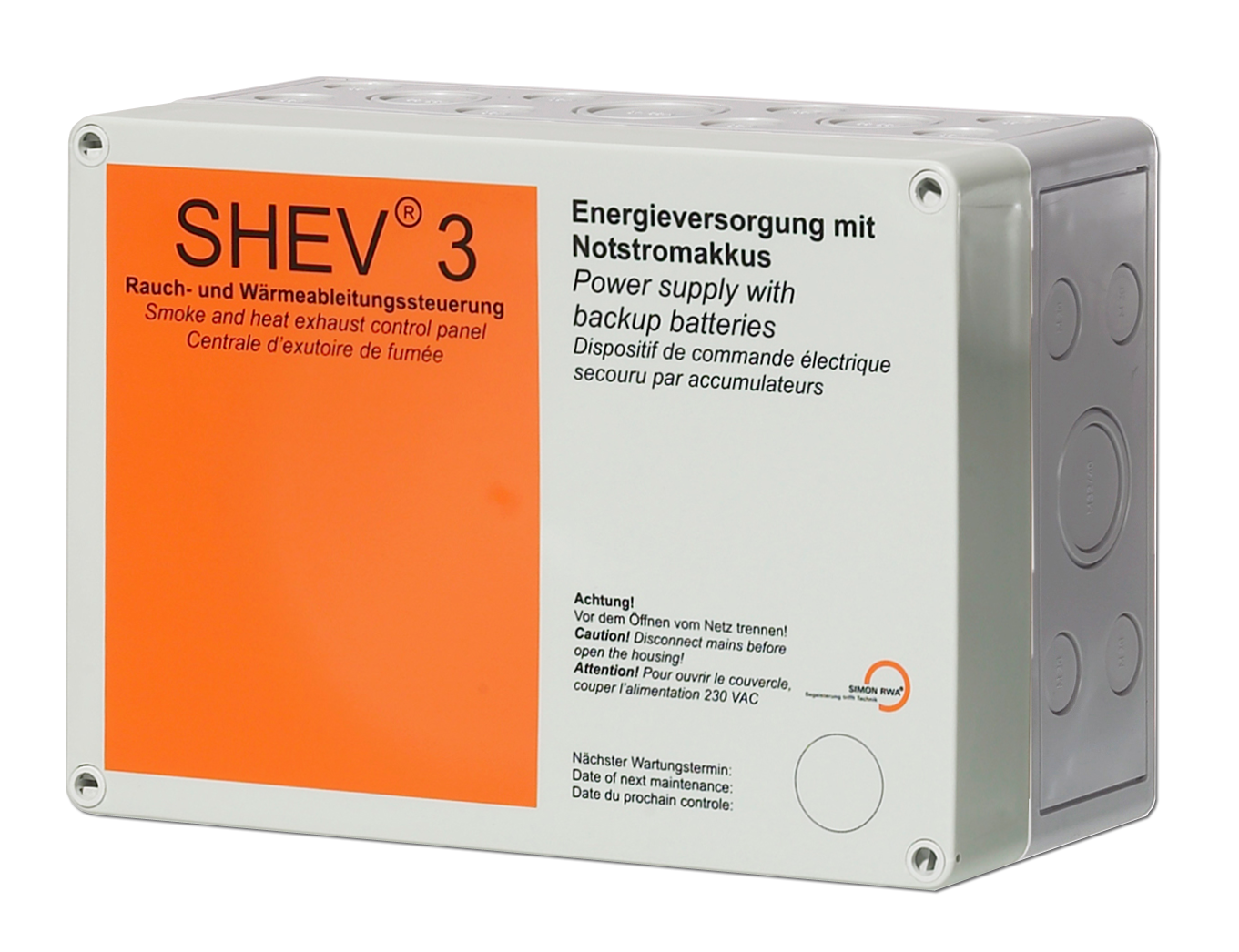

Compact control panel SHEV 3 LIFT
230 V AC / 24 V DC / 3 A

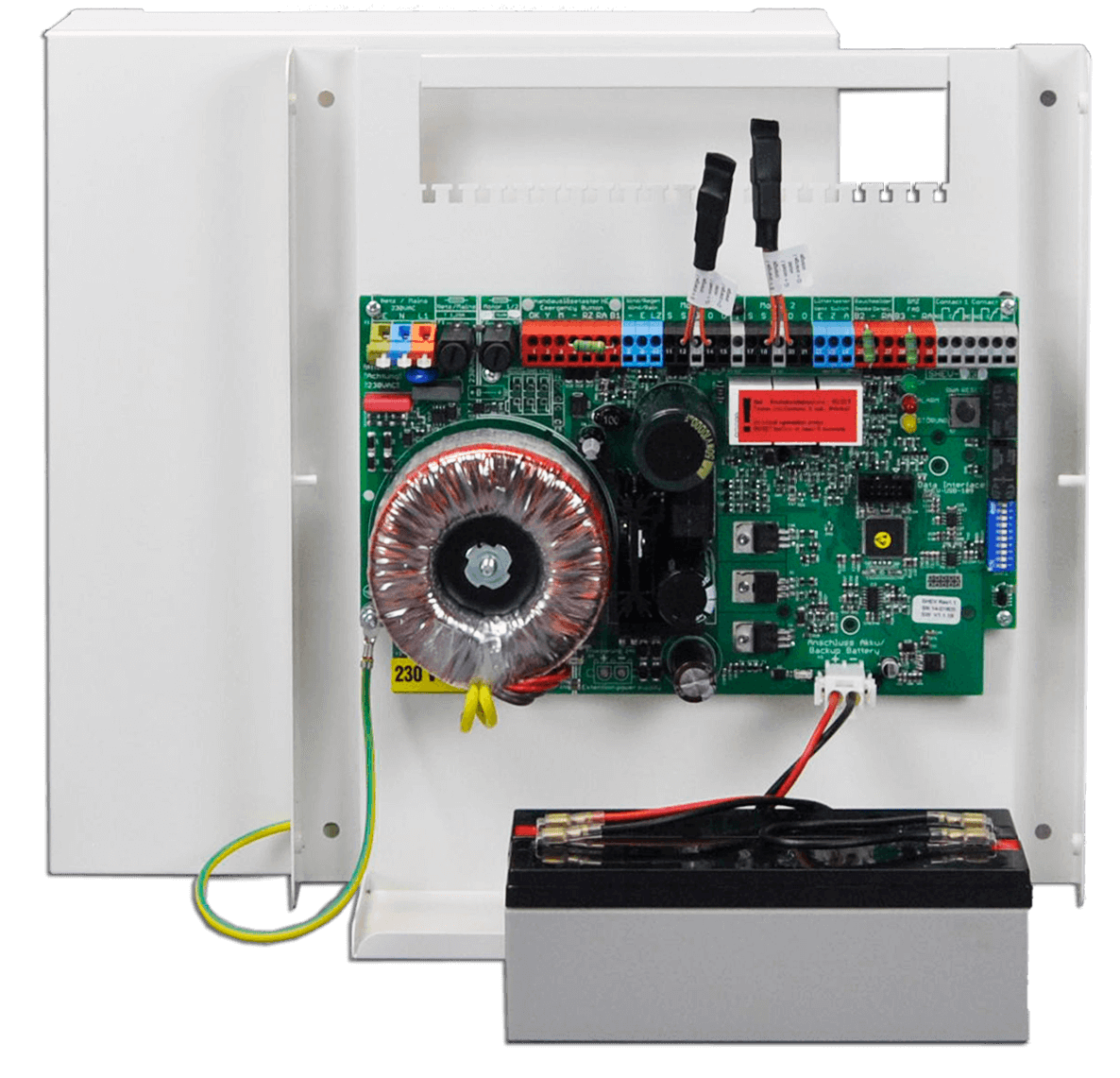

The SHEV 3 LIFT compact control panel is a compact device with an output current of 3 A. The control panel contains a primary and secondary power supply as well as the entire control and regulation technology for operating 24 Volt DC actuators for building openings. The compact control panel controls the actuators in case of fire as well as for daily ventilation. The SHEV 3 LIFT compact control panel is specially designed for lift shaft smoke exhaust and offers all necessary connections for release devices (push buttons, smoke detector, fire alarm system). In addition, various components can be connected for daily ventilation applications: wind/rain detectors, vent buttons, timers and higher-level controls. The ventilation function is at the same time a daily function control of the SHEV system.
The SHEV compact control panel is CE certified according to EN 12101-10 and tested according to ISO 21927-9.
Technical data:
Input voltage: 230 V AC
Output voltage: 24 V DC
Output current: 3 A
Monitoring: continuous and short-term operation
Protection class:: IP66
Temperature range: -5°C - +40°C
SHEV groups: 1
Ventilation groups: 1
Housing: Plastic
Color: grey (similar RAL 7035)
Dimensions (WxHxD): 254 x 180 x 111 mm
Weight: 4.40 kg
Manufacturer:
SIMON PROtec Systems GmbH
Typ: Compact control panel SHEV 3 LIFT
Article number: ST4 3175
| Matchcode | SHEV 3 LIFT |
| Article name | Kompaktzentrale SHEV 3 LIFT |
| Part number | ST4 3175 |
| Input voltage | 230 V AC |
| Output voltage | 24 V DC |
| Output current | 3 |
| Classification | CE zertifiziert DIN EN 12101-10, geprüft ISO 21927-9 |
| IP code | IP66 |
| SHE Groups | 1 |
| Ventilation groups | 1 |
| Mounting way | attached |
| Weight | 4.4 |
| Housing | Kunststoffgehäuse |
| Housing type | Plastic |
| Colour | Grau, ähnl. RAL7035 |
| Housing width | 254 |
| Housing height | 180 |
| Housing depth | 111 |
| Environment temperature range | -5 °C - 40 °C |
