Folding Arm² PA-KL²-50/710
| Part number | M2 2001 |
| Input voltage | 24 V DC |
| Nominal current | 2.0 |
| Running speed | 15.4 |
| IP code | IP54 |
| Switch on duration | 30 |

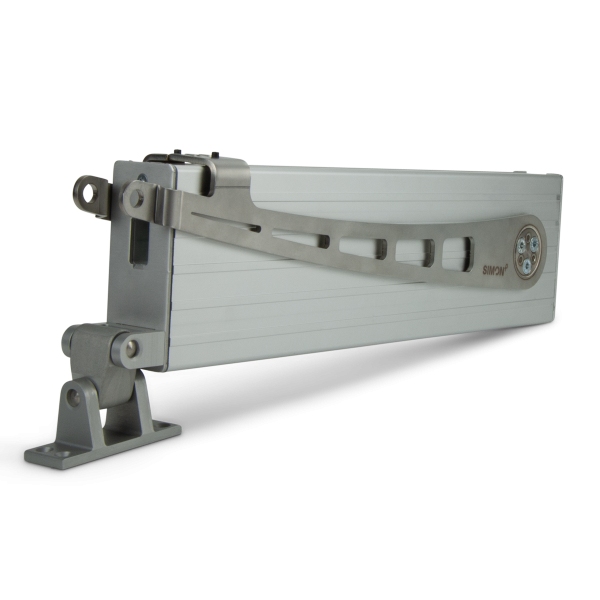

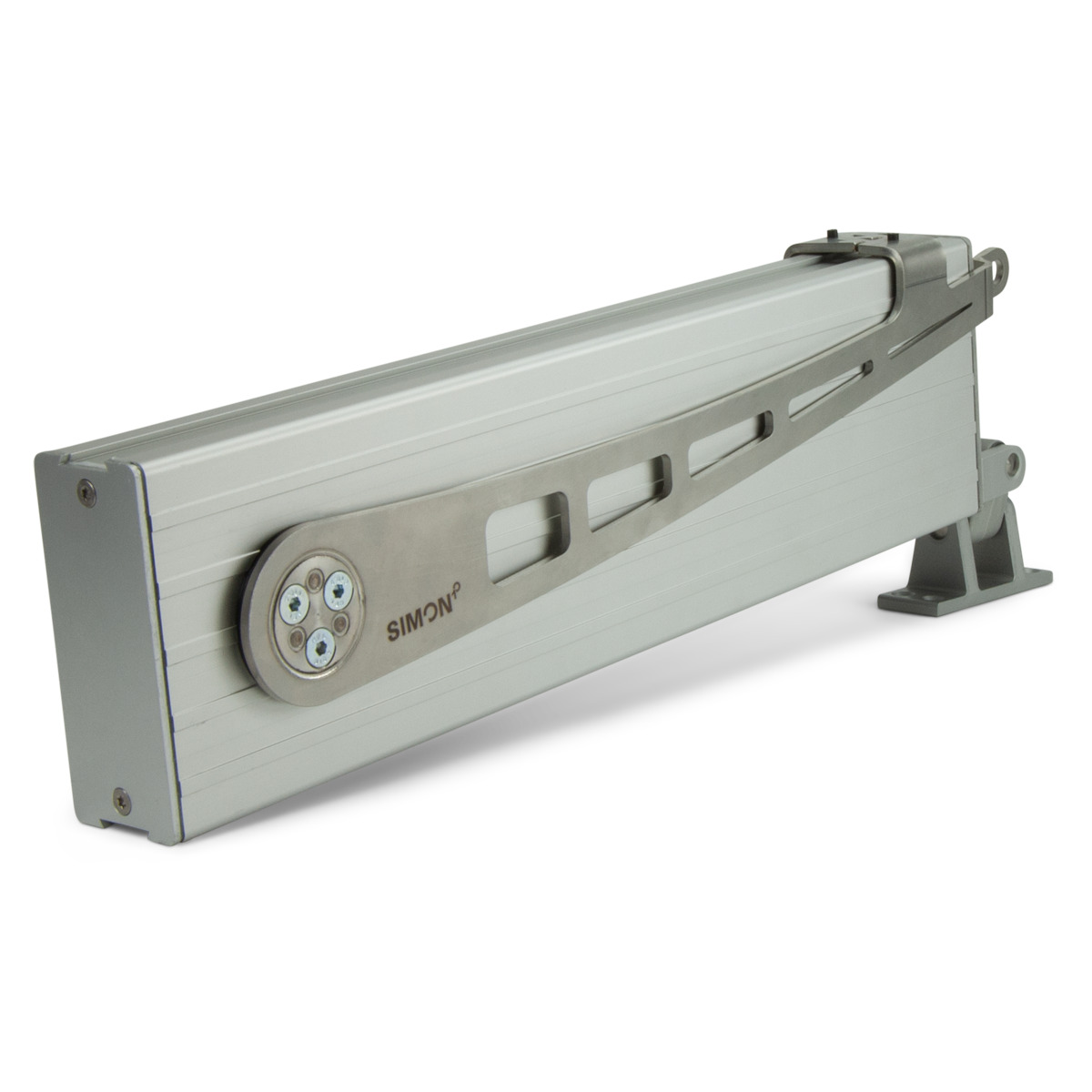

Folding arm² PA-KL²-50/710
24 V DC / 2 A / 500 N / 710 mm stroke
Single operation actuator
Folding arm window actuator for SHEV and controlled natural ventilation applications.
Flexible installation on main and secondary closing edges.
Suitable for frame and sash mounting on inward and outward opening sashes/flaps in roofs and facades.
With integrated, programmable SICO switch-off technology with microprocessor and SICO-PLUG connection plug.
Technical data:
Rated voltage: 24 V DC (- 15 % / + 25 %)
Ripple: max. 500 mV
Rated current: 2 A
Switch-on duration: 30% (ON: 3 min / OFF: 7 min)
Push force: 500 N
Pulling force: 500 N
Nominal locking force: 700 N
Stroke length: 710 mm
Running speed: 15.4 mm/s
Protection class: IP54 (IP65 on request)
Temperature range: -5°C to +75°C
Housing: Aluminium profile housing EV1 anodised
Lever: two-arm, stainless steel
Connection: SICO-PLUG (without connection cable / set)
Cut-off: Integrated overload cut-off with microprocessor
Volt-free contact (freely adjustable)
Dimensions (LxWxH): 500 x 58 x 122 mm
Weight: 4.6 kg
Options:
- Connecting cable/set
- Mounting brackets (selection depending on profile type and mounting position
- Coating according to RAL or DB
- Synchro capable actuator
Manufacturer:
SIMON PROtec Systems GmbH
Type: Folding arm² PA-KL²-50/710
Article number: M2 2001
| Force: | 500 N |
| Stroke length / Opening angle: | 710 mm |
| Operating mode: | Single operation |
| Input voltage: | 24 V DC, 230 V DC (only with AP-N-3/6) |
- Do you have any questions concerning this product?
- Operating manual_PA-KL²-x-xx_EN
- Betriebsanleitung_PA-KL²-x-xx_DE
- Sicherheitshinweise & Gewährleistungsbedingungen
- Safety instructions and warranty conditions
- Broschüre Fensterautomation
- Brochure Window Automation
- Environmental Product Declaration (EPD)
- Umweltproduktdeklaration (EPD)
- Catalogue (web) Smoke & Daily Vent
- Katalog (Web) RWA & Lüftung
- Further products by SIMON PROtec
| Matchcode | PA-KL²-50/710 |
| Article name | Klapparm² PA-KL²-50/710 |
| Part number | M2 2001 |
| Input voltage | 24 V DC |
| Nominal current | 2.0 |
| Input voltage range | - 15 % / + 25 % |
| Ripple | 500 |
| Stroke | 710 |
| Push force | 500 |
| Pull force | 500 |
| Nominal locking force | 700 |
| Classification | DIN EN 12101-2, DIN EN 60335-1, DIN EN 60335-2-103 |
| Cut-Off | Integrierte Lastabschaltung mit Mikroprozessor |
| Running speed | 15.4 |
| IP code | IP54 |
| Switch on duration | 30 |
| Mounting way | attached |
| Weight | 4.6 |
| Housing | Aluminium-Profilgehäuse E6 / EV1 eloxiert |
| Housing type | Aluminium |
| Colour | RAL & DB Farben |
| Housing length | 500 |
| Housing width | 58 |
| Housing height | 122 |
| Appliance class | III |
| Connection cable | SICO PLUG Anschluss. Exklusive Anschlussleitung / -set. |
| Nominal working temperature | 20 |
| Environment temperature range | -5 °C - 75 °C |
| Brackets included | no |
